Lagun GVC1000 machining center

Lagun GVC1000 machining center. Ask us for more information.

Additional information

CNC

Heidenhain

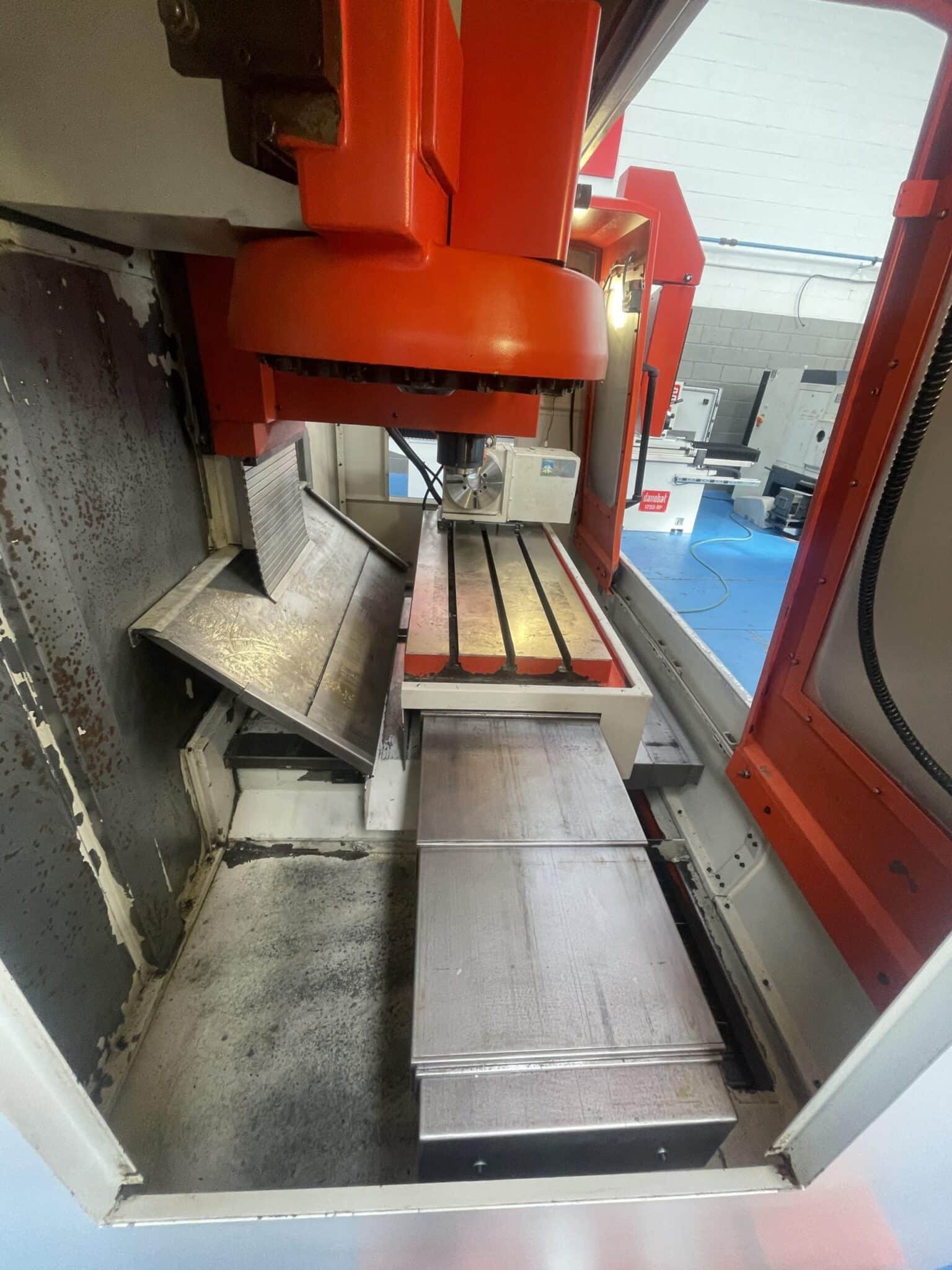

Table

1200 x 500

Slots

3 x 20 x 135 mm

Table height to the floor

910 mm

Max. weight

750 kg

Courses: X / Y / Z

1000 / 500 / 510 + 110 mm

Spindle ballscrews

.

Cono

ISO 40 BT

Speeds

From 100 to 10000 rpm

Spindle power

9 kW

Total machine power

19 kW

Cutting speed according to programming

.

Rapid feeds / X / Y; 20000 / z; 12000 mm/min

.

Accuracy

0,005 mm

Tool changer

RANDOM 24 H

Max. h-diameters 85-135 mm. Length 250 mm. Weight 6 kg

.

Tool pressure

6-7 kg / cm2

Machine dimensions

2930 x 2240 x 2750 mm

Weight

6000 kg
